I really like what I saw in the Magpul MS2 sling. But I'm not willing to spend $50 on a few feet of strap and a couple of clips. So what is one to do? Make one yourself.

I am going to post up my trial on making this. Just for the record I do have an Engineering background so I hope this won't be too hard. So lets start.

First off I am going with 1" heavy Polypropylene straps, a couple of HK clips, a plastic strap adjuster and a steel d-ring. I have purchased all this from http://www.strapworks.com/ and bought enough to screw it up 4 times :lol: . Now I just need to wait to get all this in.


thebrasilian

Well-Known Member
Joined
May 7, 2010
Messages
1,433
Location
Irmo, SC

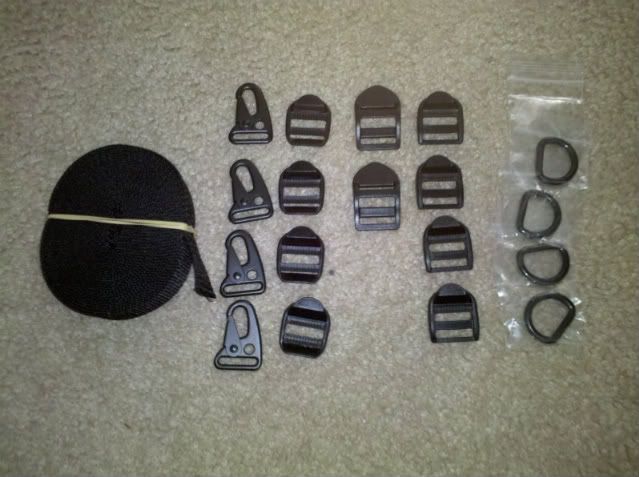

Here is what I purchase for $25 plus some changed shipped to my house. I need to find some polypro string for the wifes sowing machine though. Online (not a deep search) I only found very large spools. Going to see what I can find at Tractor supply or walmart.


thebrasilian

Well-Known Member
Joined
May 7, 2010
Messages
1,433
Location
Irmo, SC

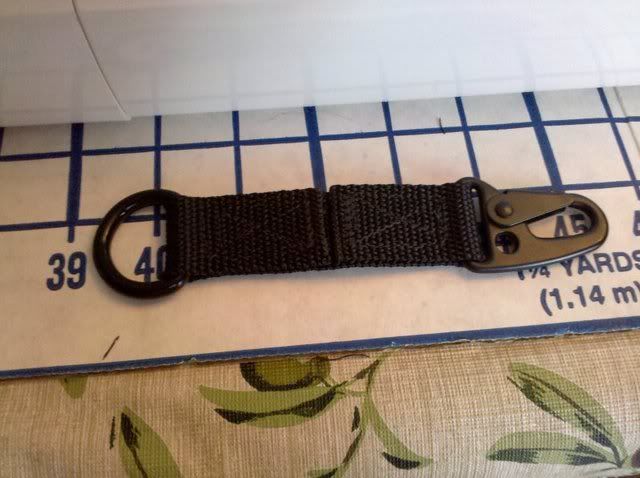

I took a trip to Michaels. They didn't have anything strong enough for thread. They recommend Hancock. So this is what I have so far.


Found out I'm not a seamstress. But, it still looks good.


thebrasilian

Well-Known Member
Joined
May 7, 2010
Messages
1,433
Location
Irmo, SC

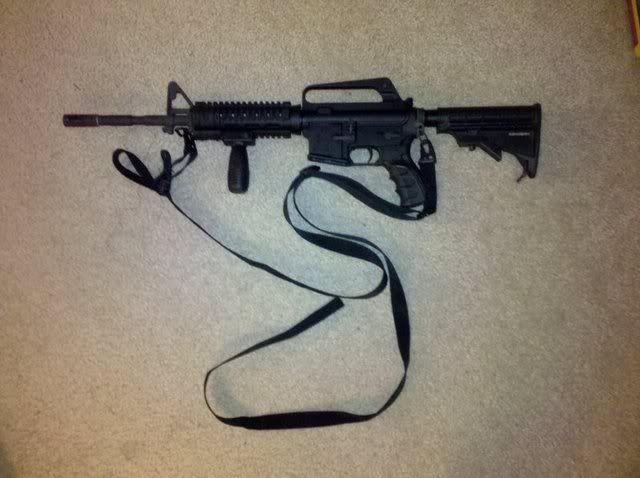

Done with the easy part. Now on to the hard part. My prototype does work...mostly. Yes that's a lot of string and extra strap. It's a prototype ;)

It appears that you need to use just a regular strap adjust where you pull for adjusting. The plastic one that I'm using has some teeth to them and I think that there is too much friction between the plastic and the strap. Will see if I can find some black ones somewhere.

On a good note: It works. Just real hard to tighten back up.


thebrasilian

Well-Known Member
Joined
May 7, 2010
Messages
1,433
Location
Irmo, SC
Well, haven't worked on this since my last post. Turns out the plastic slide for the easy adjustment has to much friction. I also noticed the shorting the MS2, from the videos on youtube, took a little more effort. So I decided to try a different route.

Will work on this a little more today and over the weekend. I'm joining a rifle club this month.


thebrasilian

Well-Known Member
Joined
May 7, 2010
Messages
1,433
Location
Irmo, SC
Wow...the casted slides make a huge difference. Once I get this rig sewed up I will post up some pictures. It works better than I thought.
