AR Build

mcdaniel

Member
Joined
Jan 14, 2010
Messages
560
I spent the afternoon painting and putting a lower together. I had installed an MOE handguard last night, so it looks great.

Started with this Palmetto State Armory Lower


Cleaned it with this


mcdaniel

Member
Joined
Jan 14, 2010
Messages
560
I decided to enamel the Safe and Fire pictograms red and white, both flat. Paint is made by Testors


mcdaniel

Member
Joined
Jan 14, 2010
Messages
560
This is Enamel Thinner, its what I used to clean up the enamel after it is on the lower.


I like these blue shop towels. (And Diet Coke)


mcdaniel

Member
Joined
Jan 14, 2010
Messages
560
Here is one pictogram painted.

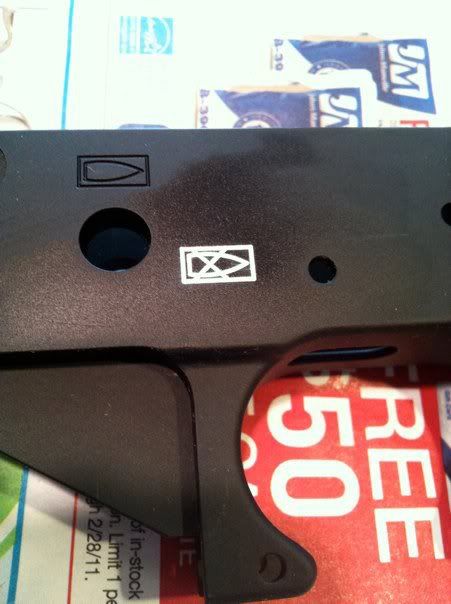

And here it is cleaned.


And here is the Fire pictogram painted.

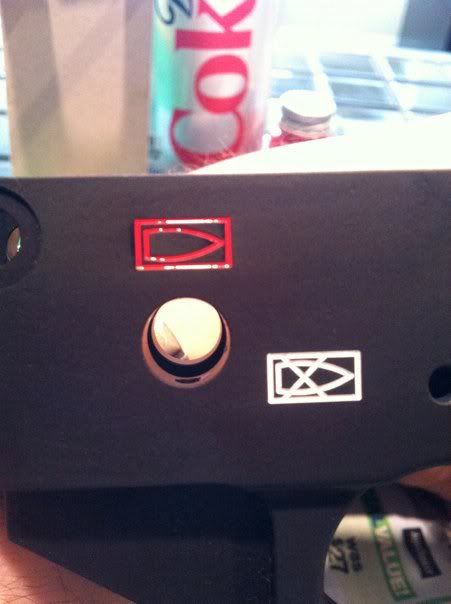

And here is one side completely done.


mcdaniel

Member
Joined
Jan 14, 2010
Messages
560

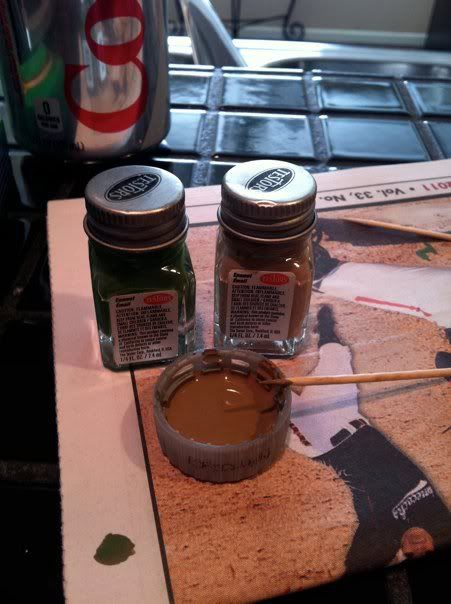

To get the Magpul FDE color I had to mix my own. I used OD Green and flat tan. A diet coke cap makes a handy paint holder.

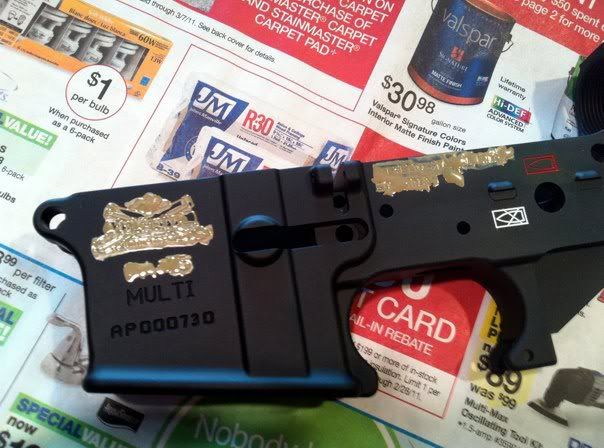

Here is the logo and roll mark with the enamel on.

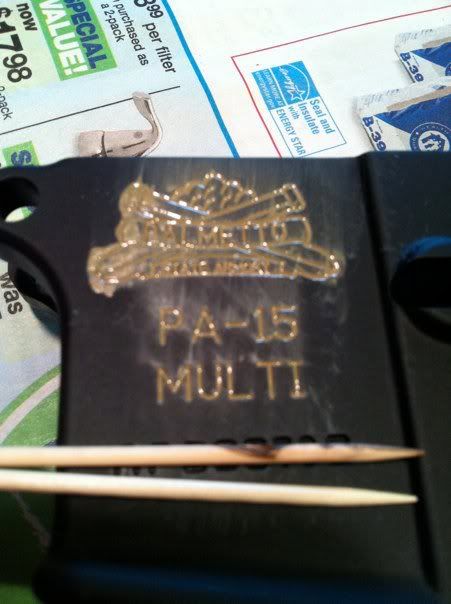

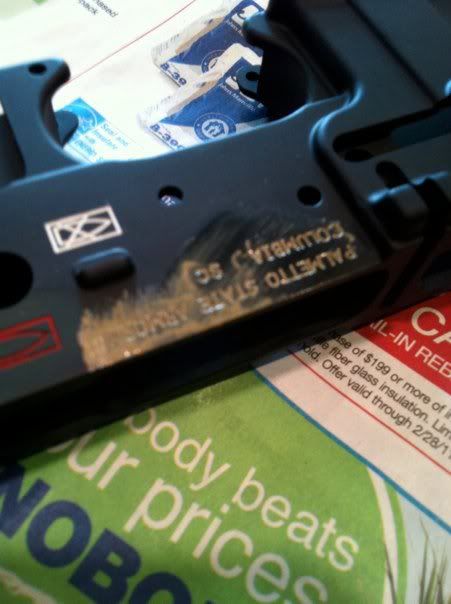

This is what it looks like when you are wiping the excess off.


Almost clean...

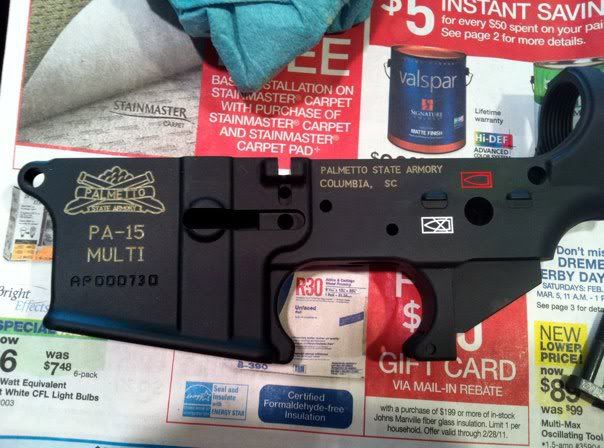

All done.


mcdaniel

Member
Joined
Jan 14, 2010
Messages
560

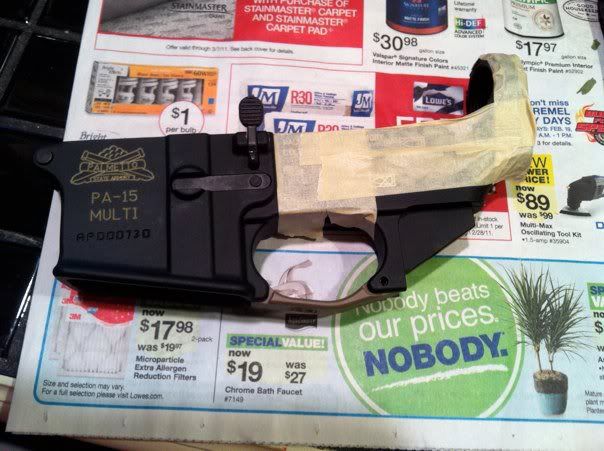

Here is the LPK going in, Liberal use of tape to avoid scratches.

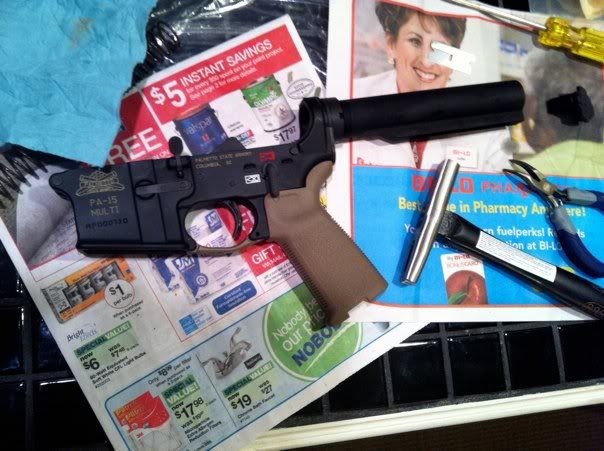

Almost there...

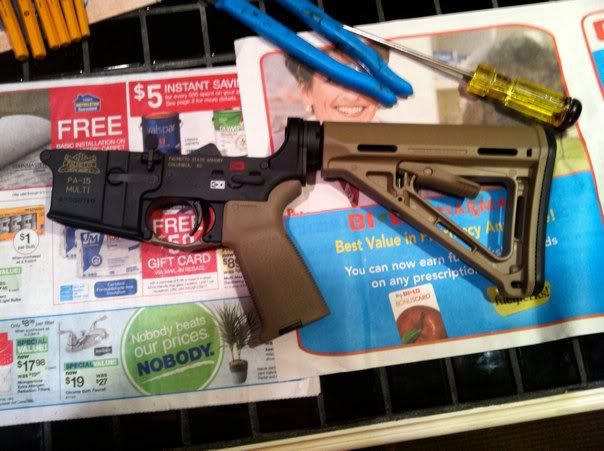

And the buttstock is in----Lower is done.


mcdaniel

Member
Joined
Jan 14, 2010
Messages
560
And here is the final product... Delton Middy upper, YHM flip up gas block and flip up rear. MAGPUL MOE furniture.

I plan to swap out a few pieces- but everything will either stay on this rifle or go into a pistol build I am collecting parts for- God bless the modular platform.


Dave29461

Active Member
Joined
Dec 23, 2009
Messages
1,862
Looks great. Like the highlighting on the pictograms and labels. Really like the midlength upper.
Dave


thebrasilian

New Member
Joined
May 7, 2010
Messages
1,433
Nice job!

did you have to thin the paint for it to run into the grooves or did it flow fine?


mcdaniel

Member
Joined
Jan 14, 2010
Messages
560
Thanks.

I did not thin the paint. I used toothpicks as "paintbrushes" and by tracing the grooves, I got decent coverage. I did two coats on the FDE that I mixed up. I didn't want to have to try to match it at a later date.


fordnut

Active Member
Joined
Oct 4, 2009
Messages
2,152
Hey Buddy...Looks GREAT....and see....you didn't even know you were an artist...

Steve


mherman18

New Member
Joined
Jan 28, 2010
Messages
7
I would like to know the exact steps you did because I am ordering a spikes lower to build and thought about this and didn't know how to approach it. Thanks in advance!

Joined
May 22, 2011
Messages
945
My wife and I did the markings and calibers on my USP 45 and her Glock 36 using bright red crayon and then scraping off the excess with a credit card.
